MCAT 4C · Chem/Phys
Electrostatics, Circuits, Magnetism and Electrochemistry
396 original Anki flashcards, an 8-page illustrated study guide, a 3-page cheat sheet and 57 practice questions for MCAT content category 4C.
What is inside
- deck.apkg396 original Anki flashcards (101 short answer, 118 multiple choice, 108 cloze, 61 true/false, 8 image occlusion), 28 original diagrams
- guide.pdf8-page illustrated study guide that explains the ideas

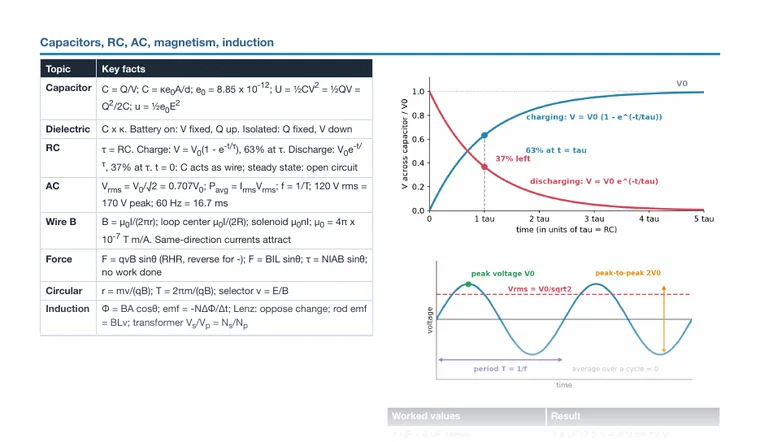

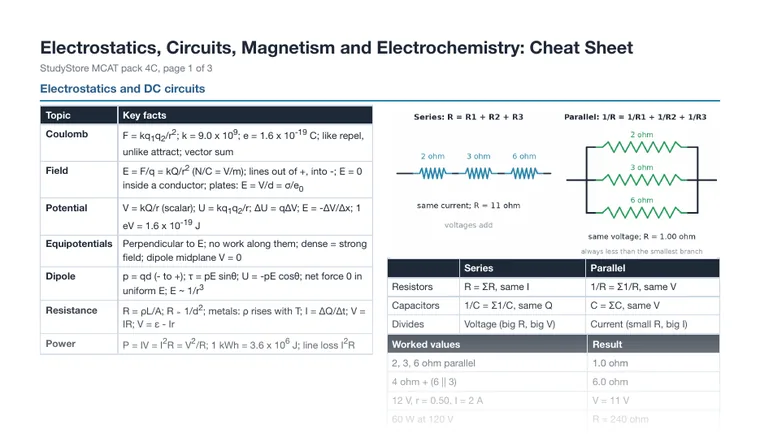

- cheatsheet.pdf3 printable pages, US Letter at 100 percent
- questions.pdf57 original MCAT-style practice questions with explanations, including 4 passage-based sets
- README.txtimport steps
- 101 short answer
- 118 multiple choice
- 108 cloze
- 61 true/false
- 8 image occlusion
Topics (26)
- 01ChCharge and Coulomb's law
- 02ElElectric field and field lines
- 03ElElectric potential and potential energy
- 04EqEquipotential surfaces
- 05ElElectric dipoles
- 06CuCurrent, resistance and resistivity
- 07OhOhm's law
- 08SeSeries and parallel resistors
- 09KiKirchhoff's laws
- 10PoPower in circuits
- 11CaCapacitance and dielectrics
- 12CaCapacitors in series and parallel
- 13RcRC circuits
- 14AlAlternating current basics and rms
- 15MeMeters: ammeter and voltmeter
- 16MaMagnetic fields and sources
- 17MaMagnetic force on charges and currents (right-hand rule)
- 18ElElectromagnetic induction basics
- 19GaGalvanic cells
- 20ElElectrolytic cells
- 21StStandard reduction potentials and cell EMF
- 22FrFree energy and cell potential
- 23NeNernst equation and concentration cells
- 24BaBatteries and rechargeable cells
- 25ElElectrolysis and Faraday's law
- 26BiBiological applications: nerve conduction, ECG
Import in 30 seconds
- Install Anki (free) from apps.ankiweb.net.
- Unzip the download, then double-click
deck.apkgor use File, Import. - Cards are tagged under
StudyStore::MCAT. Re-importing a later version updates the same notes. - Print the PDFs on US Letter at 100 percent, or read them on screen.
Free practice and notes
Free pages on this content category, no signup.

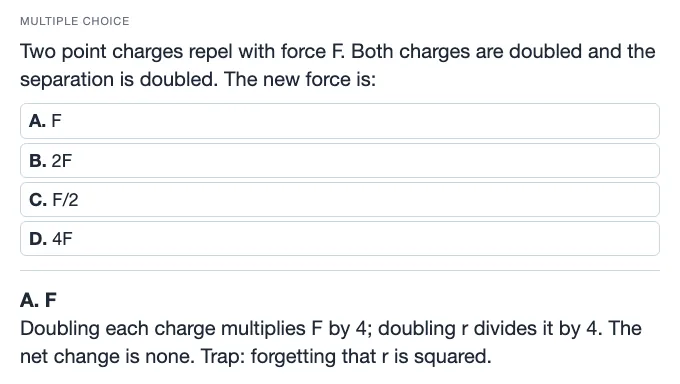

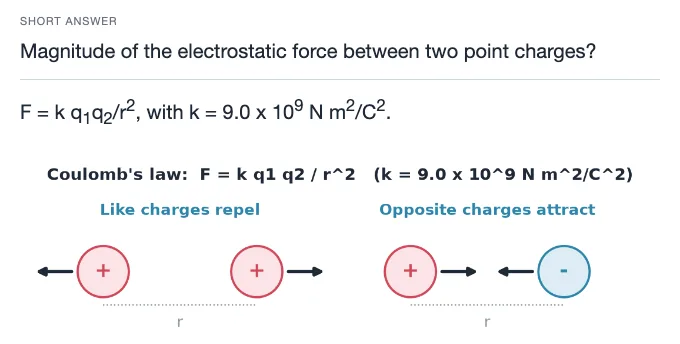

Previews
Look before you buy.
Try it · sample practice questions
Five questions from the pack.
Q1Two point charges exert a force F on each other. One charge is tripled and the separation is halved. The new force is:
D. Tripling one charge multiplies F by 3, and halving r multiplies it by 4 (inverse square), so F becomes 12F. 6F misses the square on r, 3F/4 puts the factor on the wrong side, and 3F/2 mixes the two errors.
Q2A battery with an open-circuit voltage of 9.0 V delivers 2.0 A with a terminal voltage of 6.0 V. What is its internal resistance?
B. The lost voltage is 9.0 - 6.0 = 3.0 V across r, so r = 3.0 V/2.0 A = 1.5 ohm. 3.0 ohm is the external resistance (6.0/2.0), 4.5 ohm would be 9.0/2.0 (the total resistance), and 0.67 ohm inverts the ratio.
Q3A 2.0 uF capacitor discharges through a 1.0 megohm resistor. About how long does it take for the voltage to fall to half its starting value?
D. tau = RC = 2.0 s and the half-time is tau ln 2 = 0.693 x 2.0 = 1.4 s. 2.0 s is the time to reach 37 percent, 0.50 s inverts tau, and 4.0 s is 2 tau (13.5 percent left).
Q4A 0.20 m wire carrying 4.0 A is perpendicular to a 0.30 T field. The magnetic force on the wire is:
B. F = BIL sin 90 = (0.30)(4.0)(0.20) = 0.24 N. 0.060 N is B x L x 1 (forgetting the current), 0.015 N is a misplaced decimal, and 3.8 N inverts the arithmetic.
Q5Three metals have standard reduction potentials A+/A = +0.50 V, B2+/B = -0.20 V, and C+/C = -1.00 V. Which pair gives a galvanic cell with the largest E0 cell?
D. The largest E0 comes from the most negative anode and the most positive cathode: 0.50 - (-1.00) = 1.50 V with C as the anode and A as the cathode. The 0.70 V and 0.80 V pairs are galvanic but smaller, and the last pair reverses the roles, giving a negative (nonspontaneous) value.
Those are real questions from the pack, word for word.
